NEW UPGRADED VERSION: This Vector Network Analyzer added battery circuit management, more secure. Redesigned PCB, you can connect to mobile phone with Type C-Type C cable( original PCB needs OTG cable), see a clear HD image on your phone. Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software. Moreover, added a shell case, which is protective and dust-proof
IMPROVED HIGH ACCURACY: HF VHF UHF Antenna Analyzer Measuring added a shell case, which is protective and dust-proof.The metal shield is designed to reduce the external interference and improve the measurement accuracy
IMPROVED FREQUENCY ALGORITHM RANGE: Frequency range is 10KHz -1.5GHz .The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics
MINI & PORTABLE:Upgraded NanoVNA that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 2.8-inch LCD display, portable with battery powered or USB powered.Built in 650mAh battery, could work for 2 hours continuously, if need extra working time, it can be connected to power bank or power source

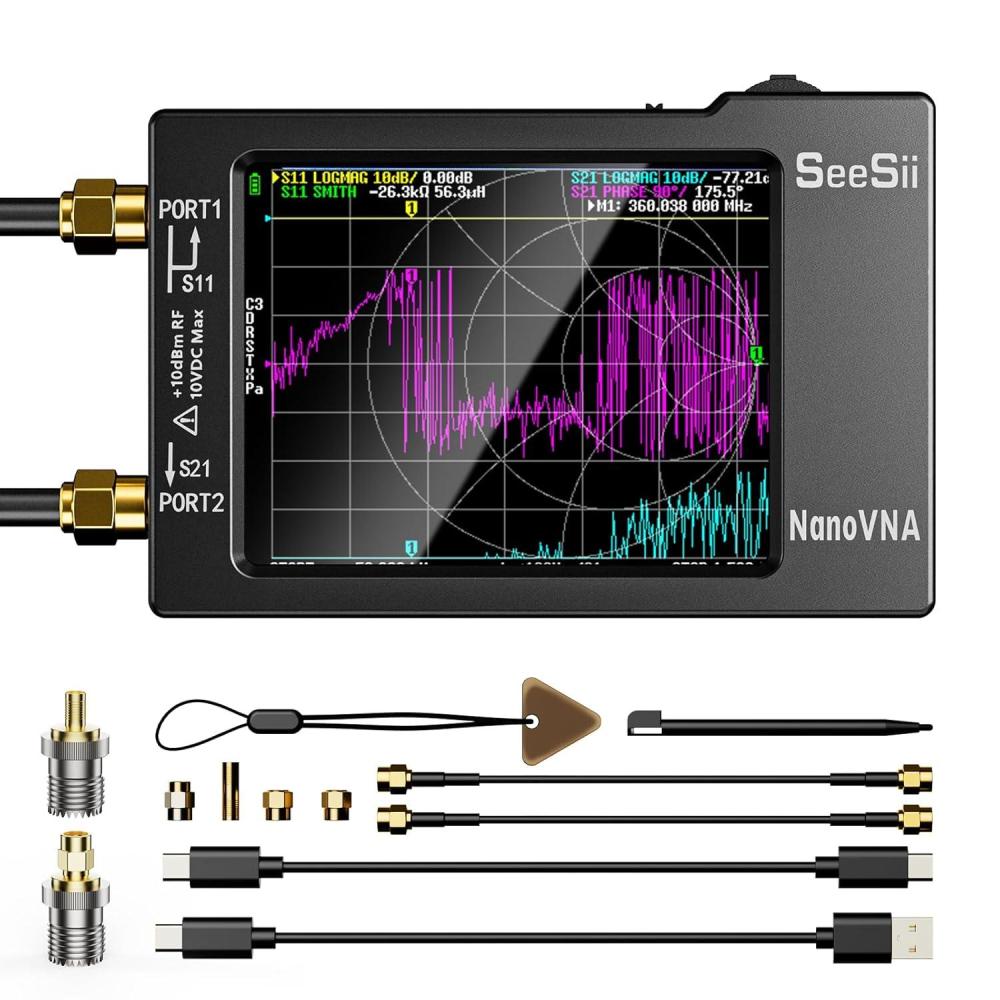

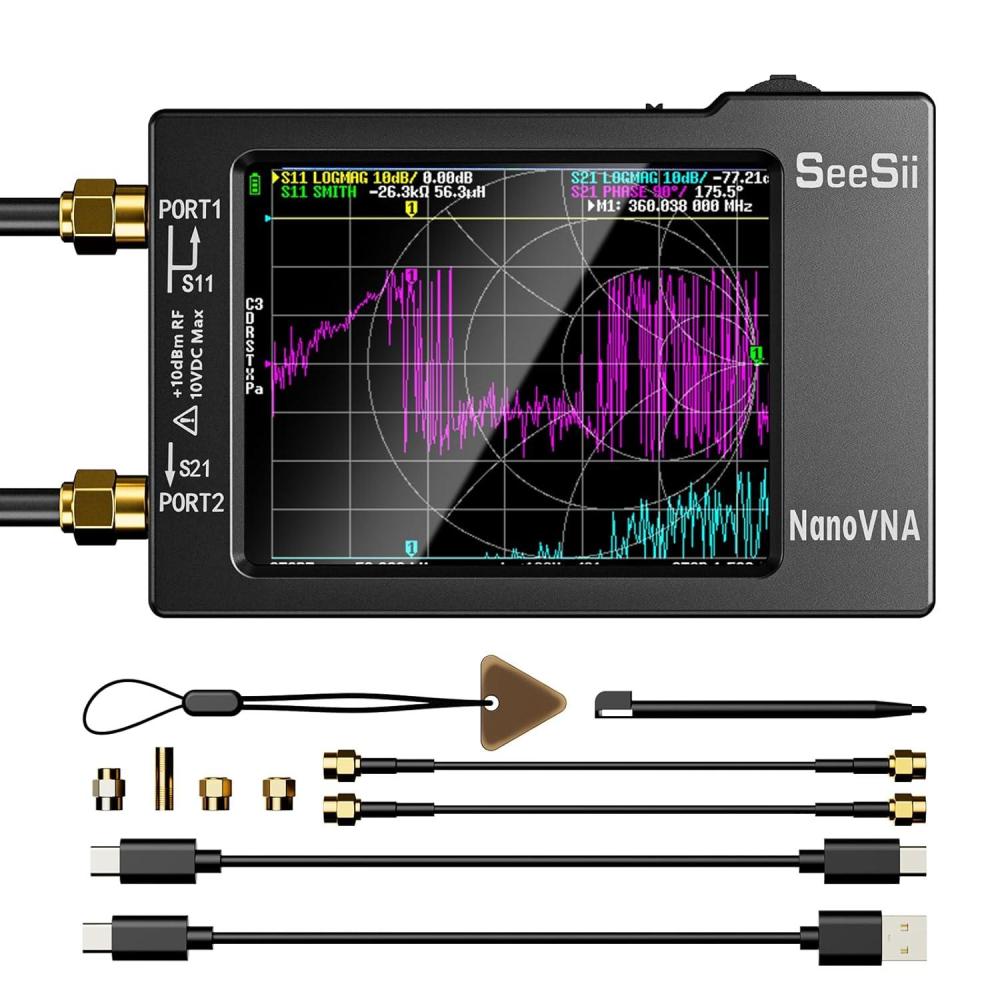

WHAT CAN YOU GET: Upgraded NanoVNA hostx1, USB Type-C data cable x1, 30mm SMA male to male RG174 RF cable x2, SMA simple calibration kit x1, SMA female to female connector x1
Package Dimensions : 5.2 x 4.17 x 2.36 inches; 1 Pounds
Item model number : NanoVNA-H
Batteries : 1 Lithium Ion batteries required. (included)
Date First Available : December 1, 2019
Manufacturer : Seesii
